There are a couple of approaches when using a router plane to remove material to a specific depth. You can use a chisel to remove the bulk of the material and then go over it with a router, or you can make incremental depth changes with the router until the final depth is established.

Removing the bulk gallery:

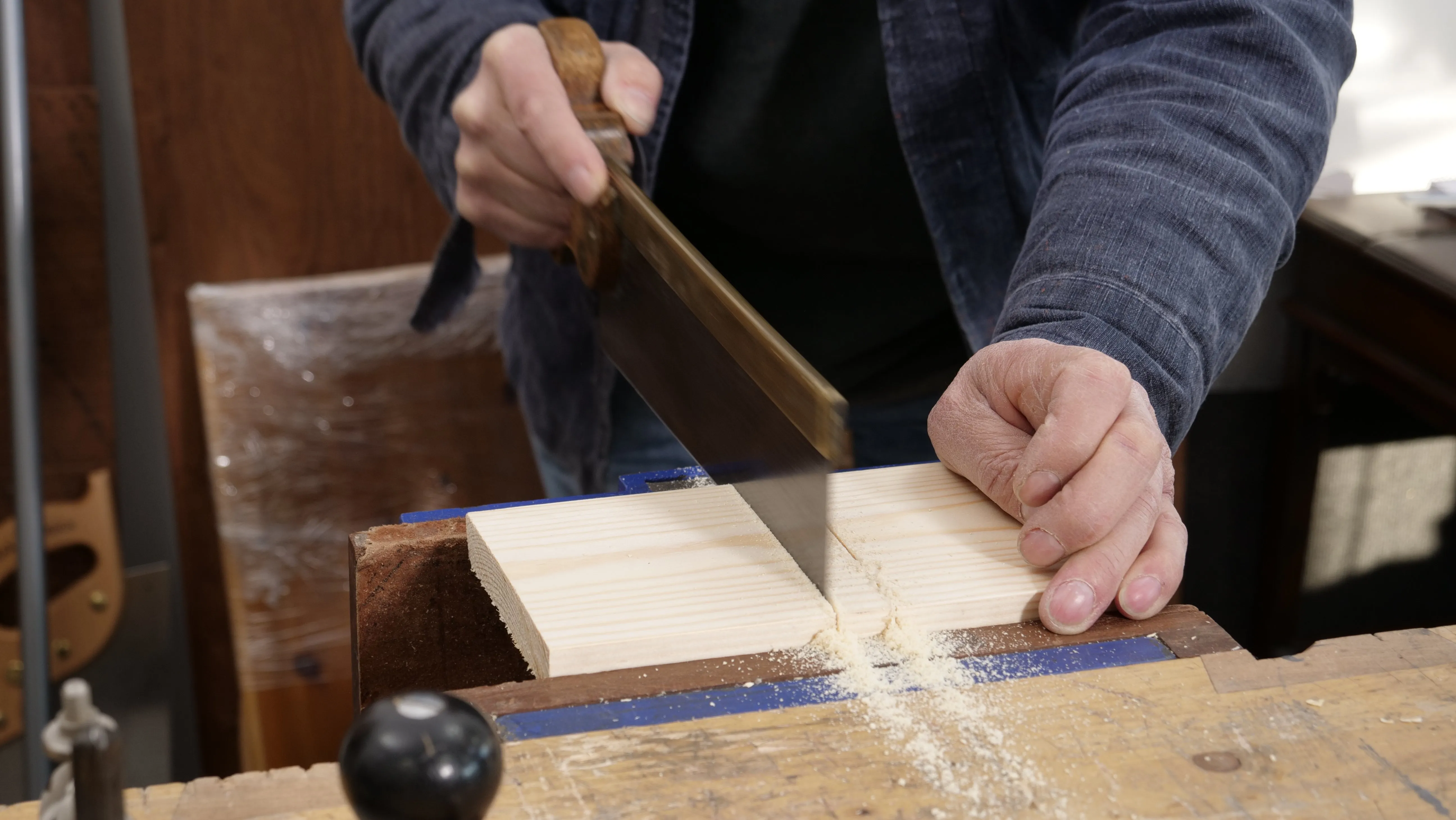

Saw down the sides to stop the wood splitting when pare cutting with the chisel

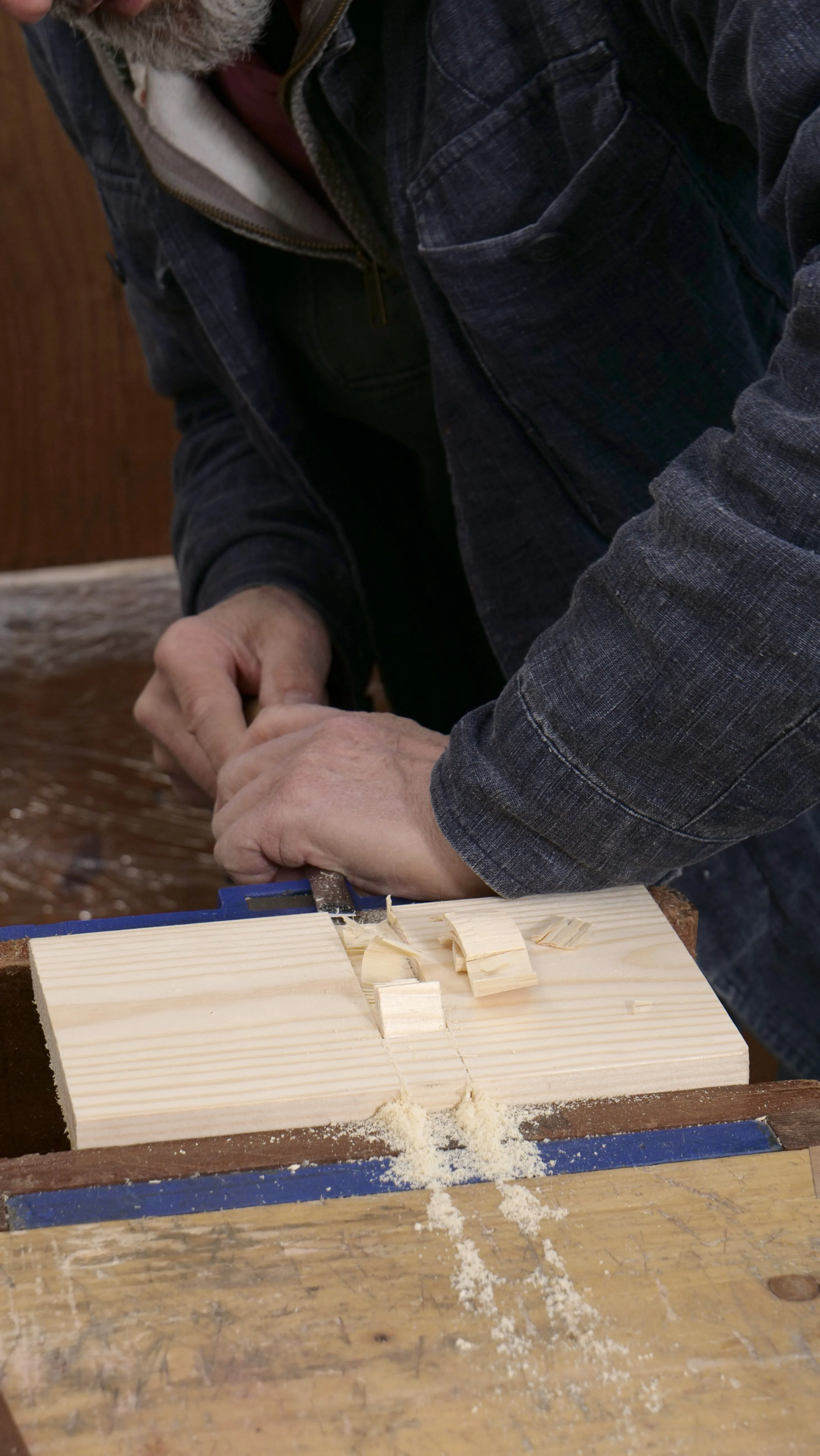

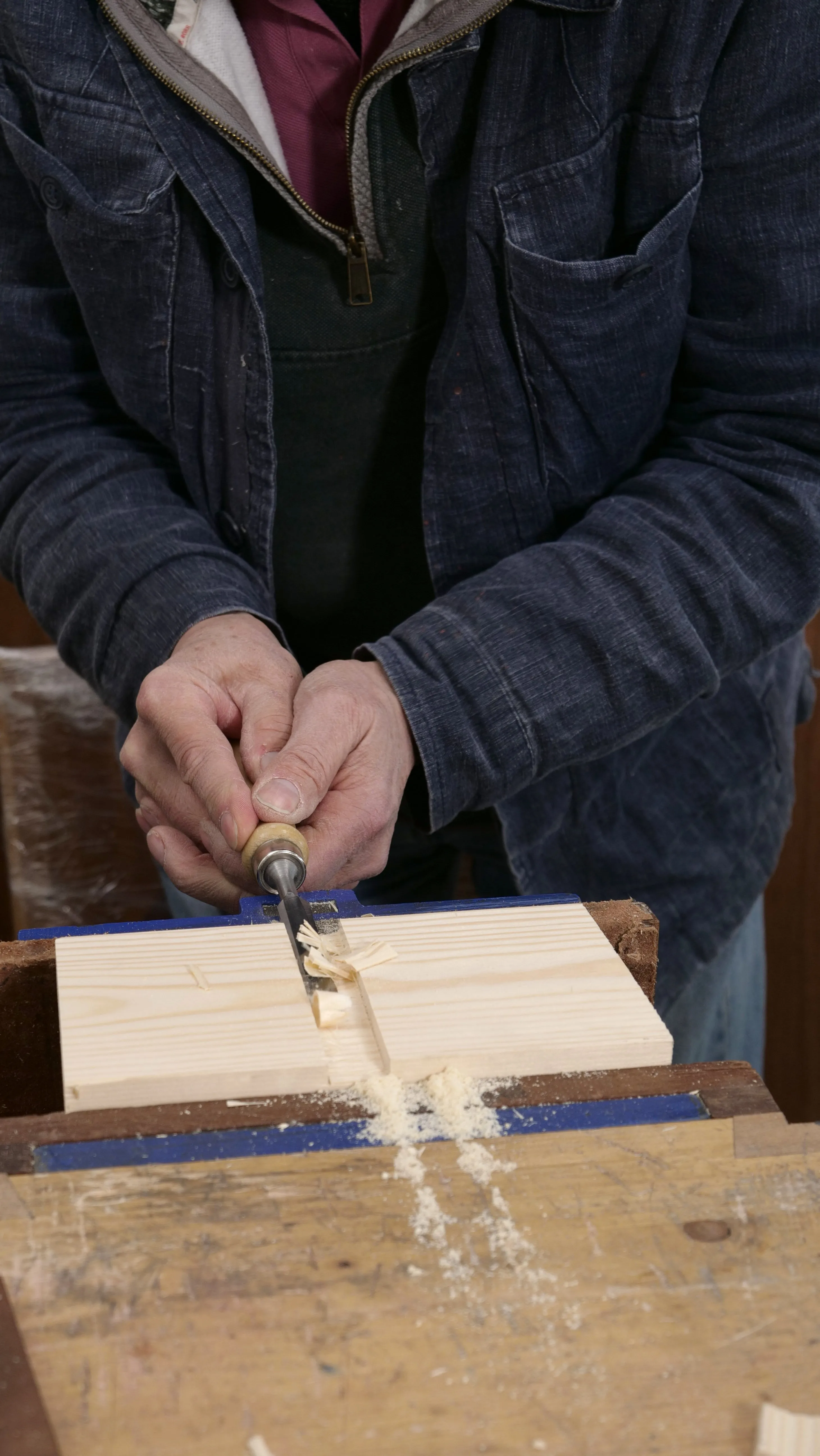

Remove the bulk of the material using a chisel. You can use a hammer to strike the end, or the heel of your hand.

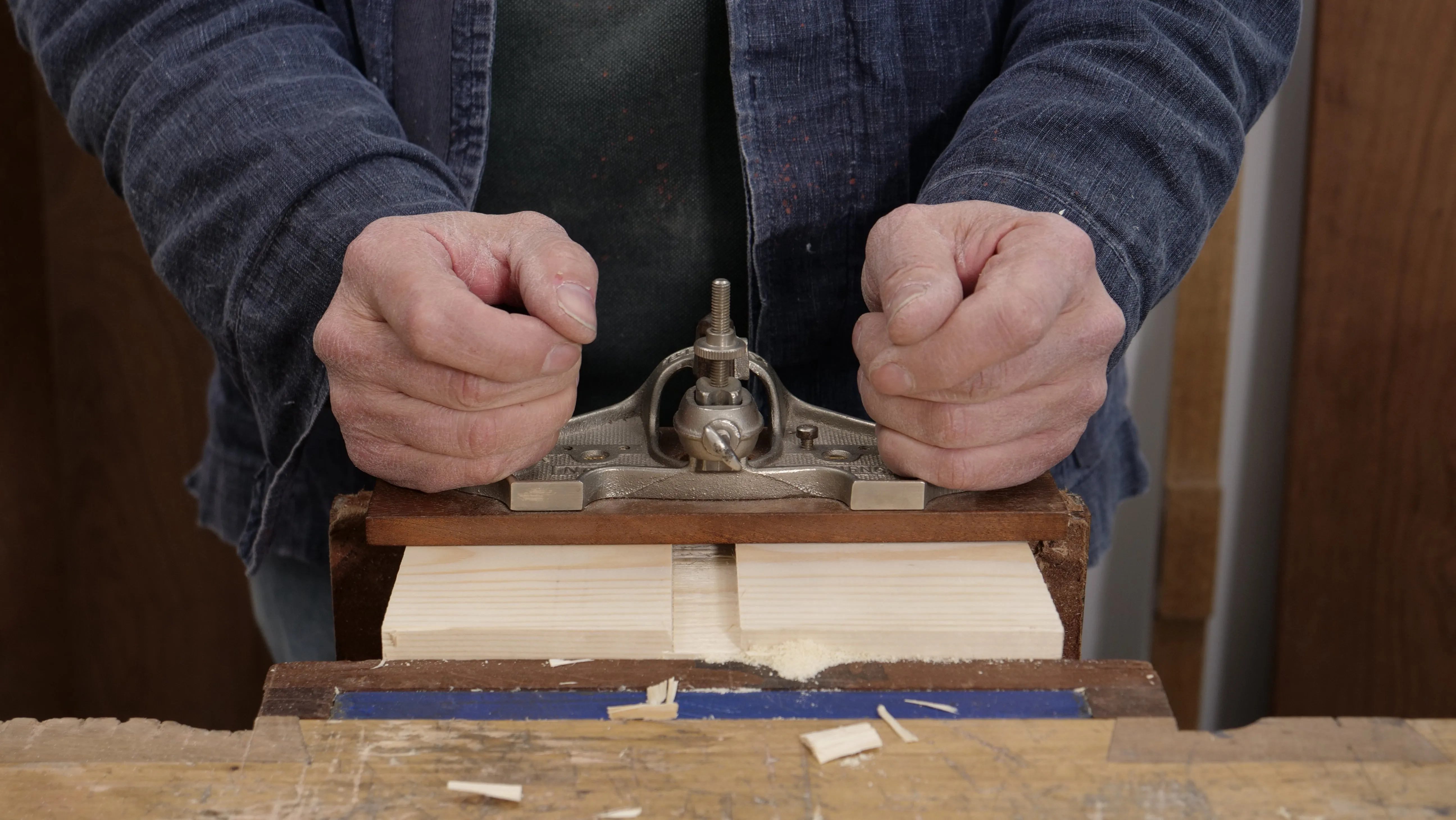

Though used to level out recesses, the router plane is not designed to remove a lot of material in one go.

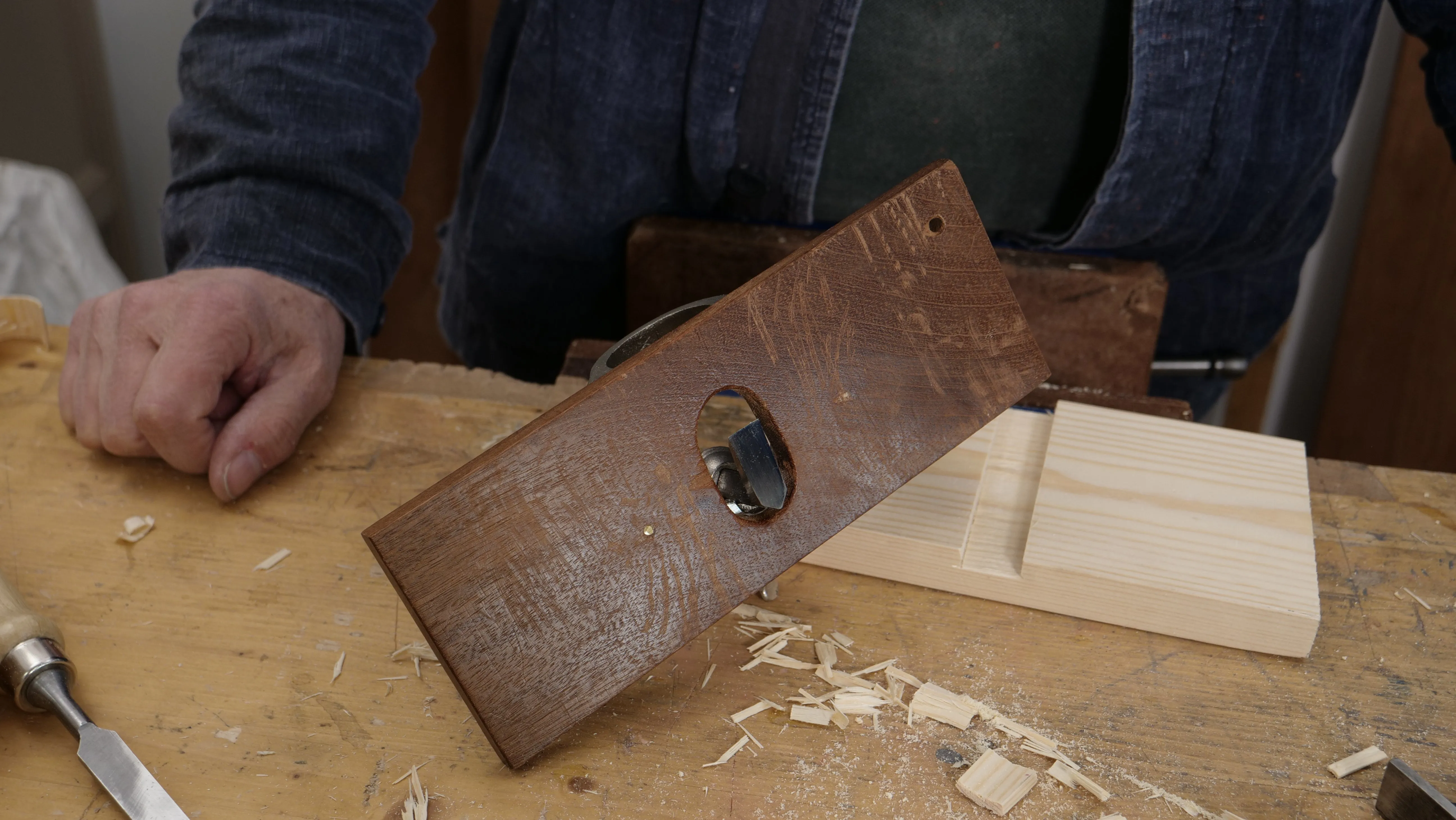

You can use the router on both a push and a pull stroke. You can also add a wooden sole onto the plane sole, as wood on wood has much less friction when compared to metal. Metal can also mark lighter coloured woods. Adding an extension gives you a larger surface area with which to span the recesses of your work.

Tenon surfacing refers to the planing of a tenon cheek to level it. A router is often used as the final step before assembly.
