The Sliding Bevel Guide

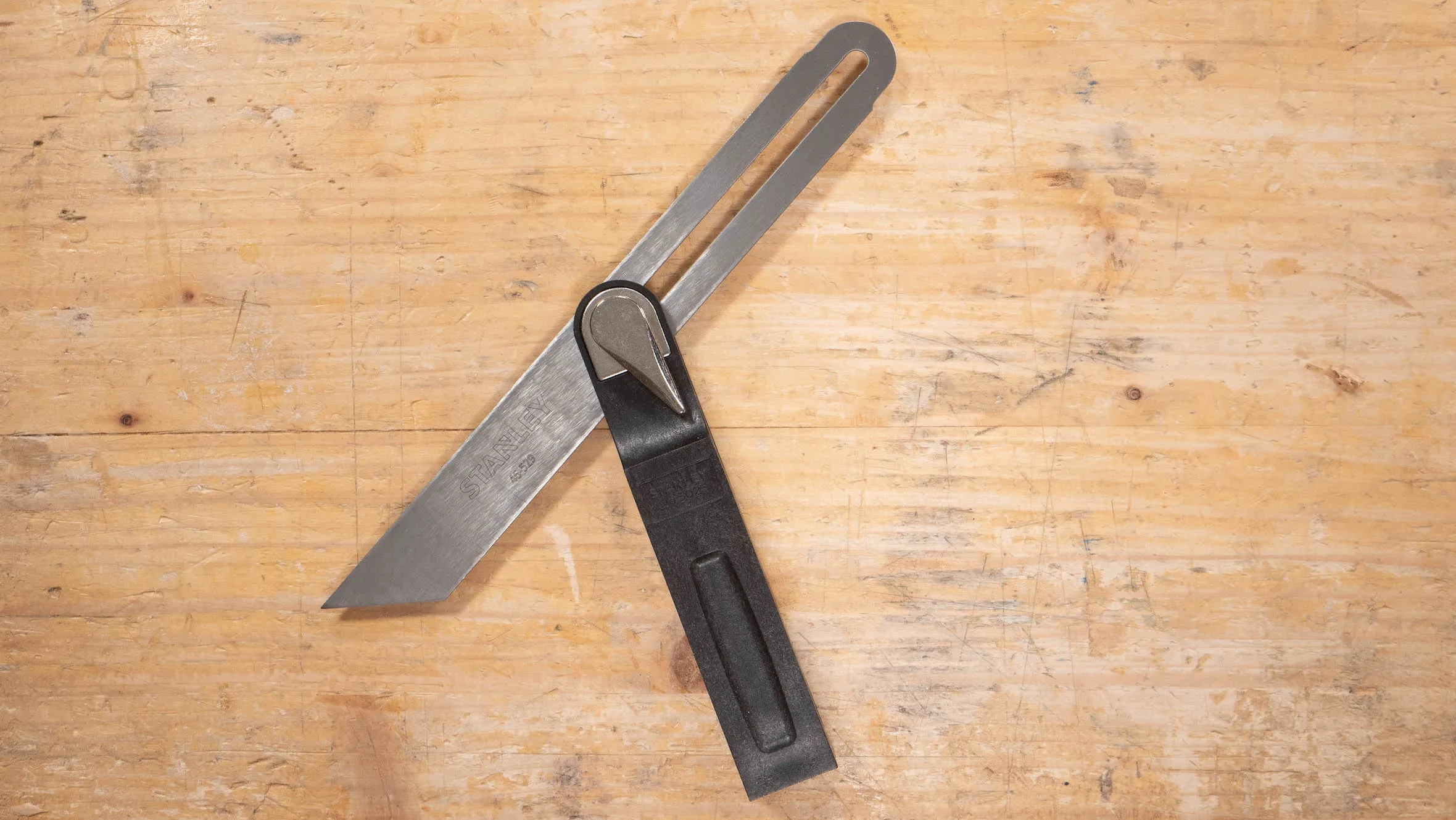

The sliding bevel is a layout tool which is essential for accurate and precise woodwork. It is made up of two parts, the beam and the stock, both of which can move on an axis. These can be fixed us...
The sliding bevel is a layout tool which is essential for accurate and precise woodwork. It is made up of two parts, the beam and the stock, both of which can move on an axis. These can be fixed using a wingnut to allow you to transfer an accurate angle marking.
The stock can be made from wood, plastic or metal. The beam is usually made from tempered spring steel and can vary in size. The locking system can vary. Sometimes it is a wingnut which is tightened by hand, or it can be a sunken screw which needs a screwdriver. Both are very effective locking systems. The screw, however, allows you to lay the stock flush against the wood on both sides, whereas the protruding wingnut doesn’t allow for this.
Uses
The sliding bevel is used in the same way as the combination square. However, unlike the combination square, it can be set at any angle. This tool is often used alongside other tools such as the layout knife to create precise markings for joints.
Terminology
Other Names:

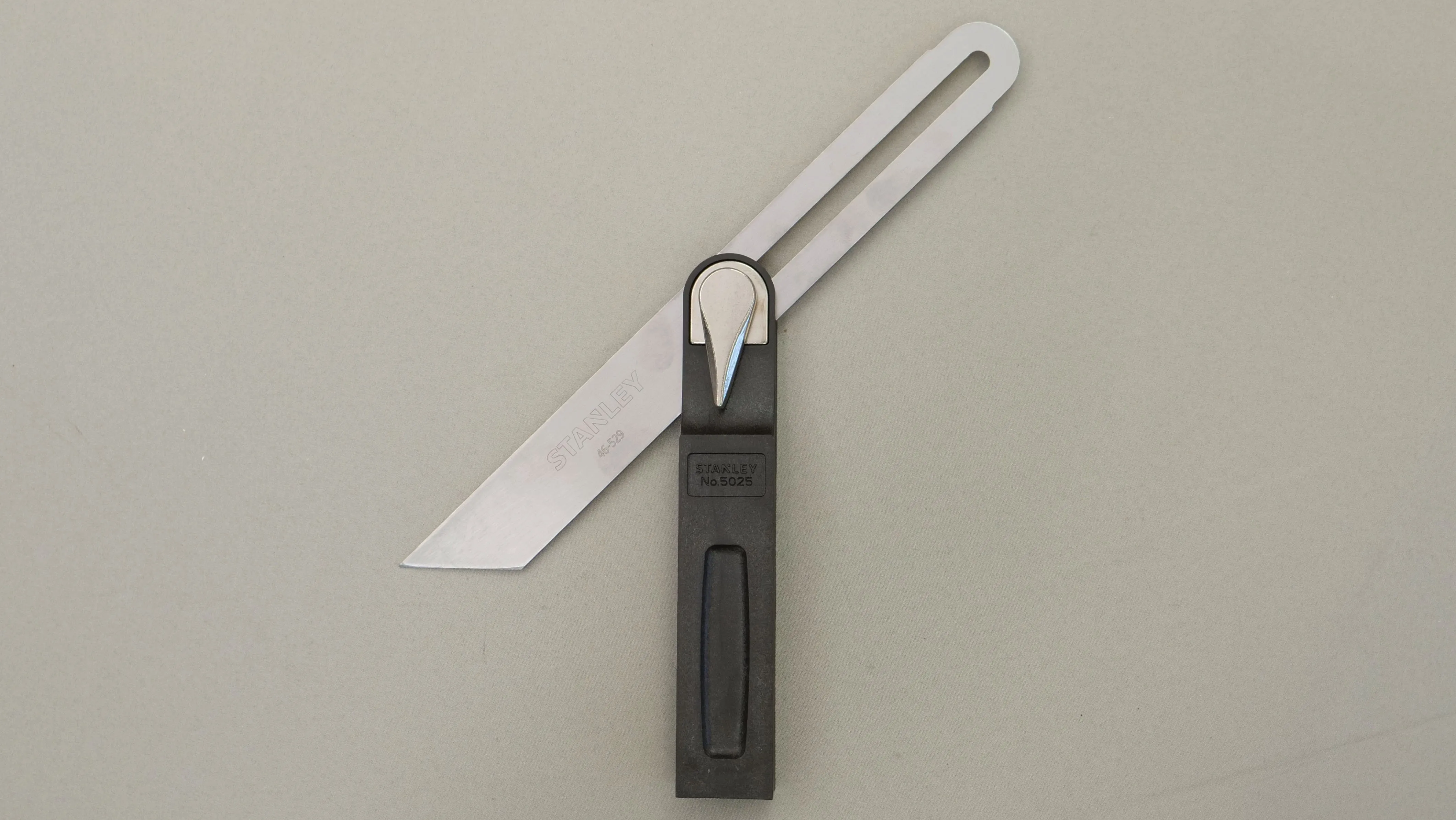

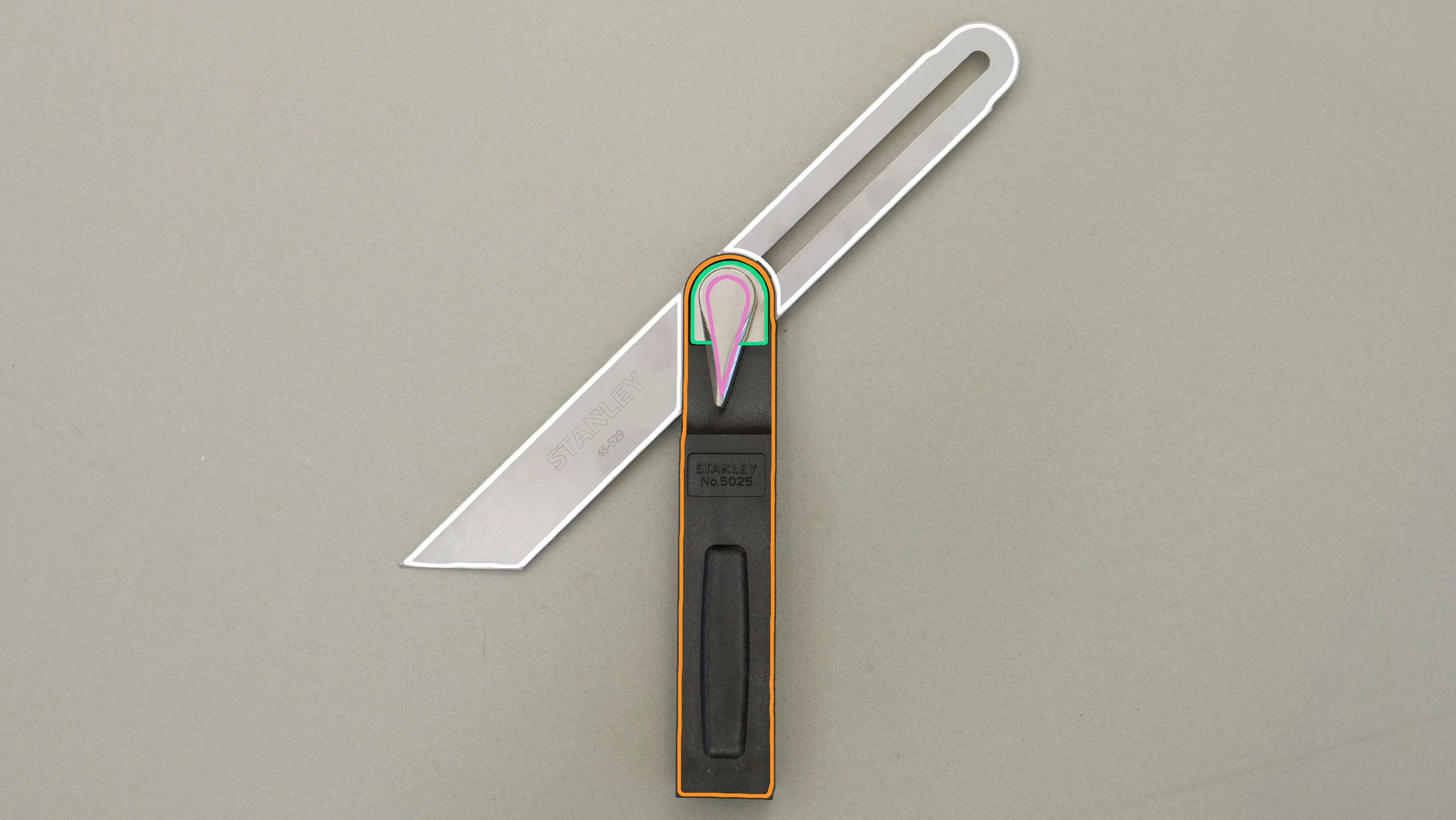

Parts of The Sliding Bevel
● Pressure Plate
◎ Beam
● Locking Bolt
● Locking Lever
● Stock
