The Chisel Guide
Chisels are one of the most commonly used tools in the history of woodworking. They are made up of a steel blade attached either to a wooden or plastic handle. Chisel hammers and wooden mallets are...
Chisels are one of the most commonly used tools in the history of woodworking. They are made up of a steel blade attached either to a wooden or plastic handle. Chisel hammers and wooden mallets are the tools we use to strike the end of the handle to allow you to split, chop and pare wood. Chisels are primarily used for developing woodworking joints and shaping wood.
Uses
Chisels are often used on the surface of wood, using paring cuts. Paring is the method we employ to remove levels of wood bit by bit using a slicing motion. You can choose to remove wood by paring the surfaces using hand pressure only, or you can remove larger chunks using direct blows with the chisel hammer or mallet. The pressure applied generally determines how deeply the chisel enters the wood, but this can also be adjusted by the angle we present the chisel to the wood; the steeper the angle, the deeper the blade digs into the fibres.
For paring wood we rely on hand pressure only and use both hands to present the chisel to the wood. With the dominant hand on the handle and the other wrapped around or pressing the blade, push with a slicing motion into the wood.
Another use of chisels is split cutting. This is where we position the cutting edge on the end grain of the wood and strike the handle with a chisel hammer. This drives the chisel into the fibres along or with the grain to split the wood away in chunks rather than shavings. This is a great method for removing lots of material quickly. However, you are limited by the direction of the grain, which is not always straight or to your advantage.
You can also chop cut using a chisel. This is where you are cutting directly into the grain, usually perpendicular to the grain, but not always. This is a technique we use for chopping mortises and various recesses. After striking with a hammer, if the chisel doesn’t dig into the wood, then you should consider presenting the chisel at a slightly steeper angle. This method works best when removing sections of material at a time.
Terminology
Types of Chisels

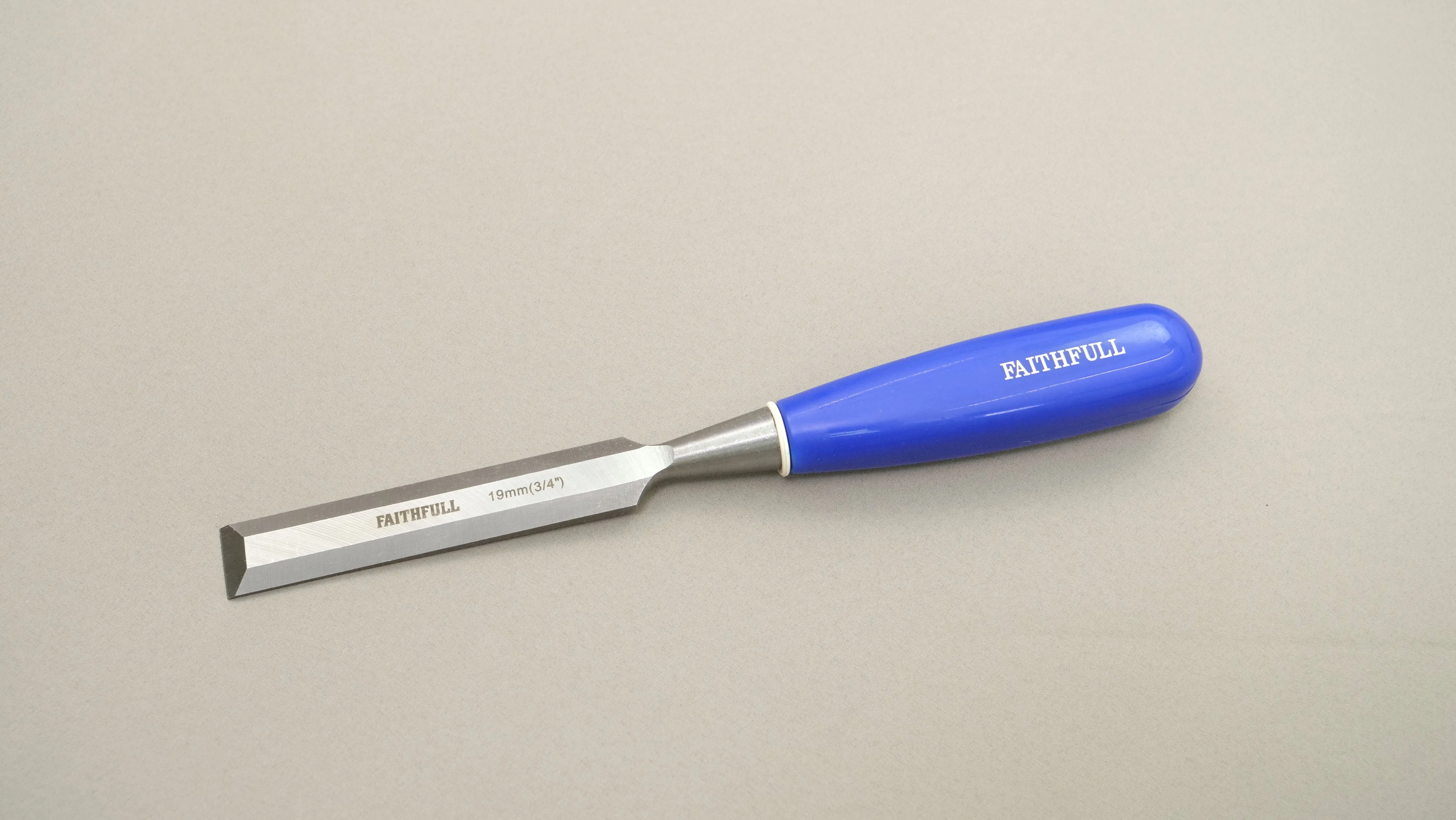

There are several common types of chisels. The most commonly preferred type is the bevel-edged chisel. This is most suited to use in most hand tool woodworking, however if you have any of the below they will also work but may not be as versatile:

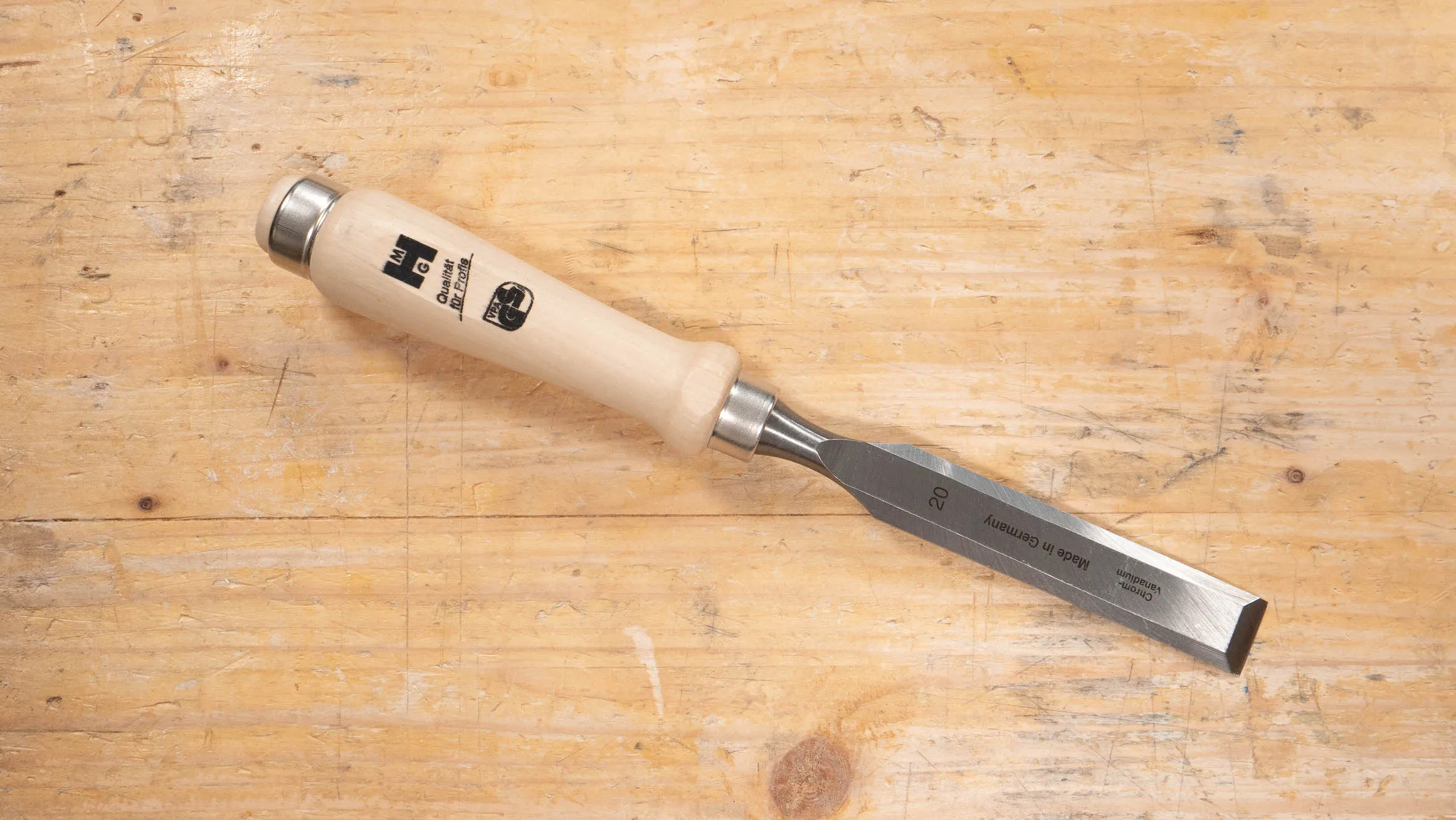

Parts of a Chisel
● Blade
● Side Bevel
● Bevel
● Bolster
◎ Handle
